Model 1:32
Desktop walking model 1:32
3D-printed, 7 × SG90 servos, ESP32 with Wi-Fi web remote
- 1:32scale
- 7 × SG90servos
- ≈521 gmass
About the model

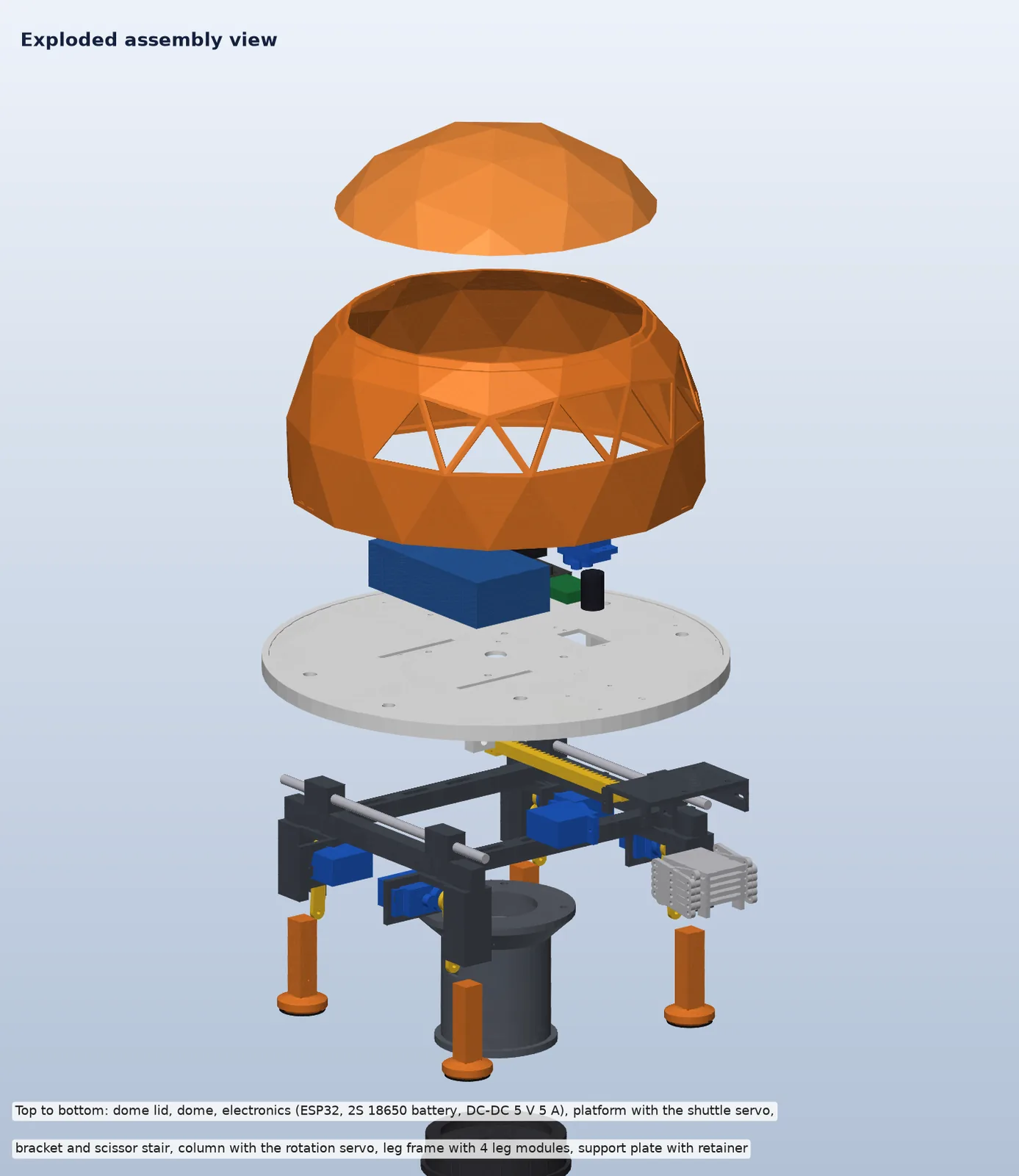

A desktop model of Concept 1 at 1:32: the same dome, legs on a common frame, a central rotating plate and a scissor ladder. Seven SG90 servos and an ESP32 controller with a Wi-Fi access point and a browser-based remote; all parts fit a 220 × 220 mm print bed. The model has been designed and calculated and the firmware compiles; a physical prototype has not been assembled yet.
Documentation
ENPDF (EN) — English5.0 MBRUPDF (RU) — Russian5.0 MBZIPModel files: STL, ESP32 firmware, FreeCAD (ZIP)1.8 MB
All calculations are conceptual, without FEM strength analysis.
Key specifications
| Based on | Concept 1 (dome with central plate) |
|---|---|
| Scale / size | 1:32; dome Ø 187.5 mm, platform Ø 206 mm, height 190 mm |
| Mass | ≈521 g |

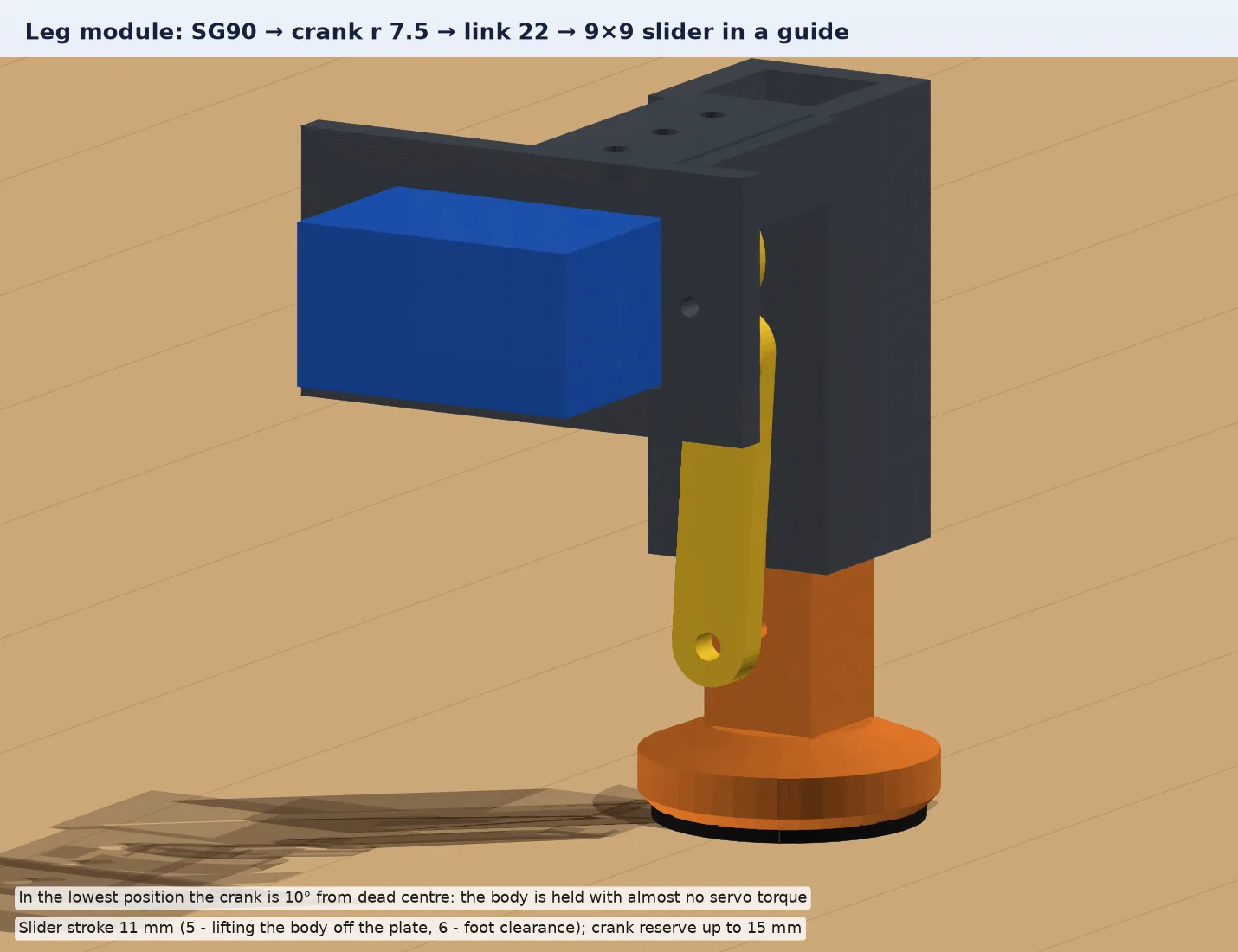

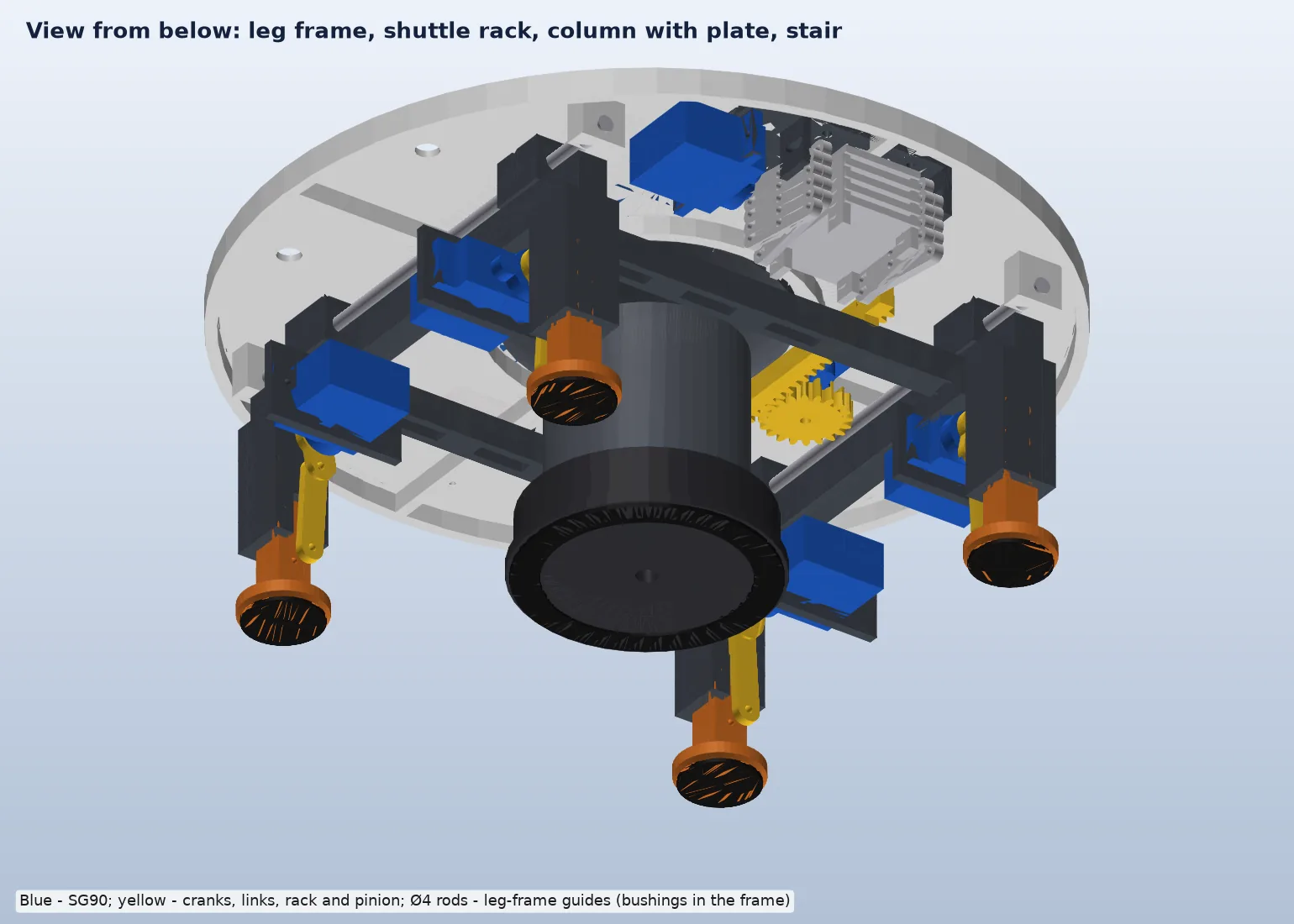

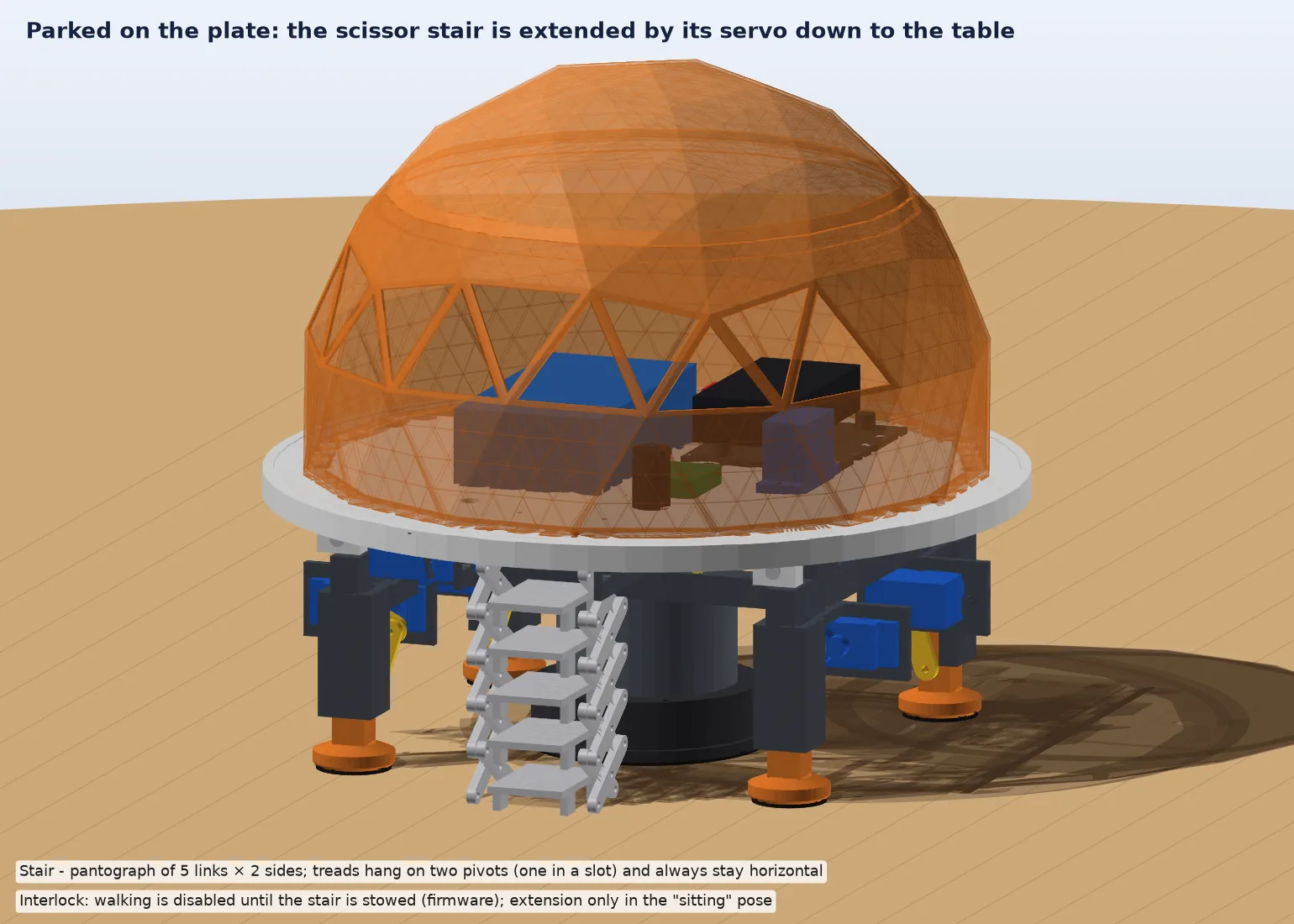

| Drives | 7 × SG90: 4 leg lifts, shuttle, rotation, scissor ladder |

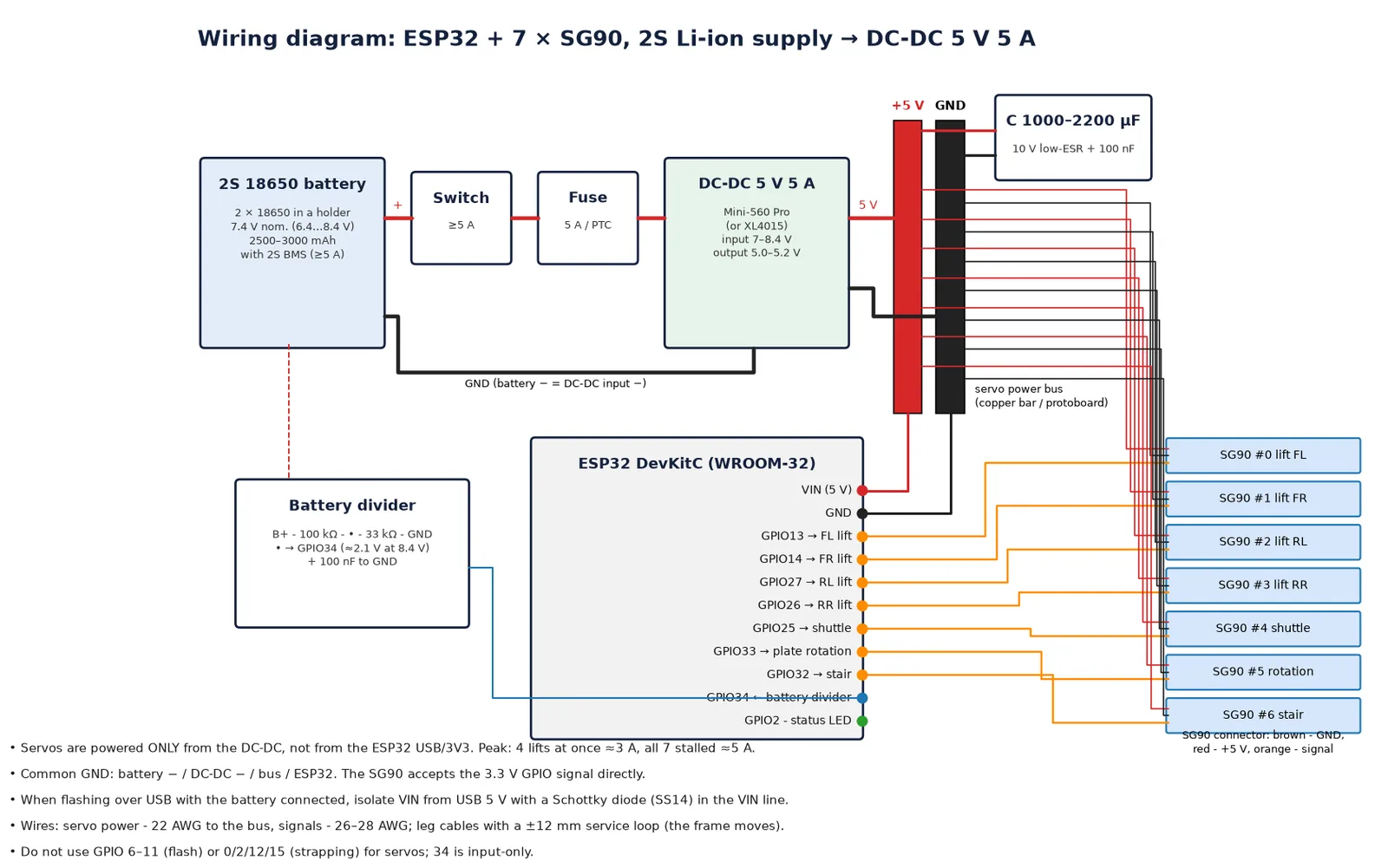

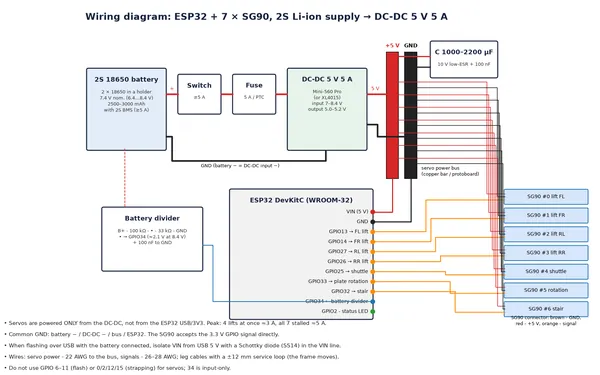

| Control | ESP32: Wi-Fi access point with a web remote + USB serial commands |

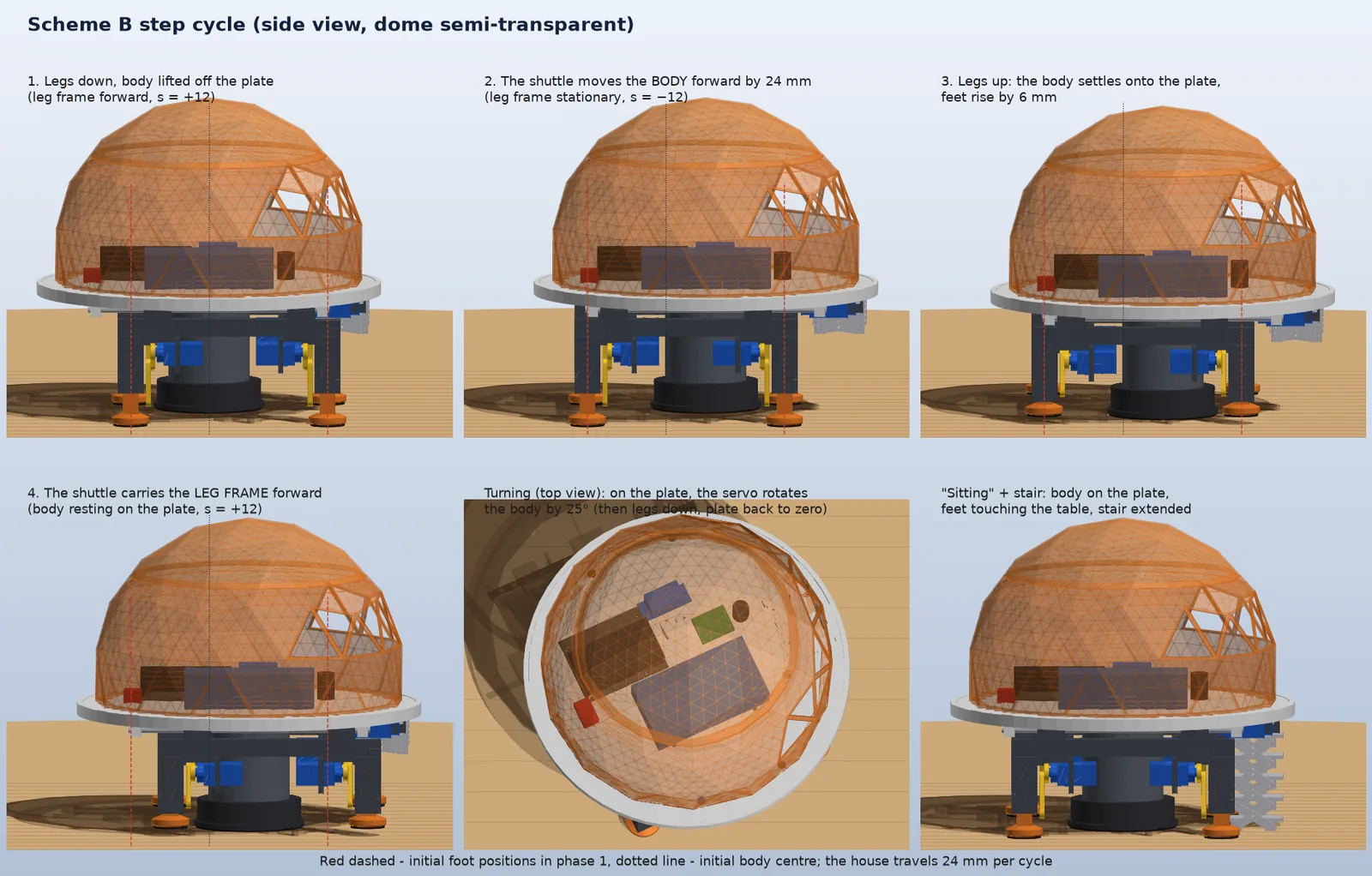

| Step / speed | 24 mm per ≈4 s cycle, ≈0.36 m/min |
| Power supply | 2S Li-ion 18650 → DC-DC 5 V 5 A; ≈3 h of operation |
| Lift torque margin | 2.5× (worst case) |

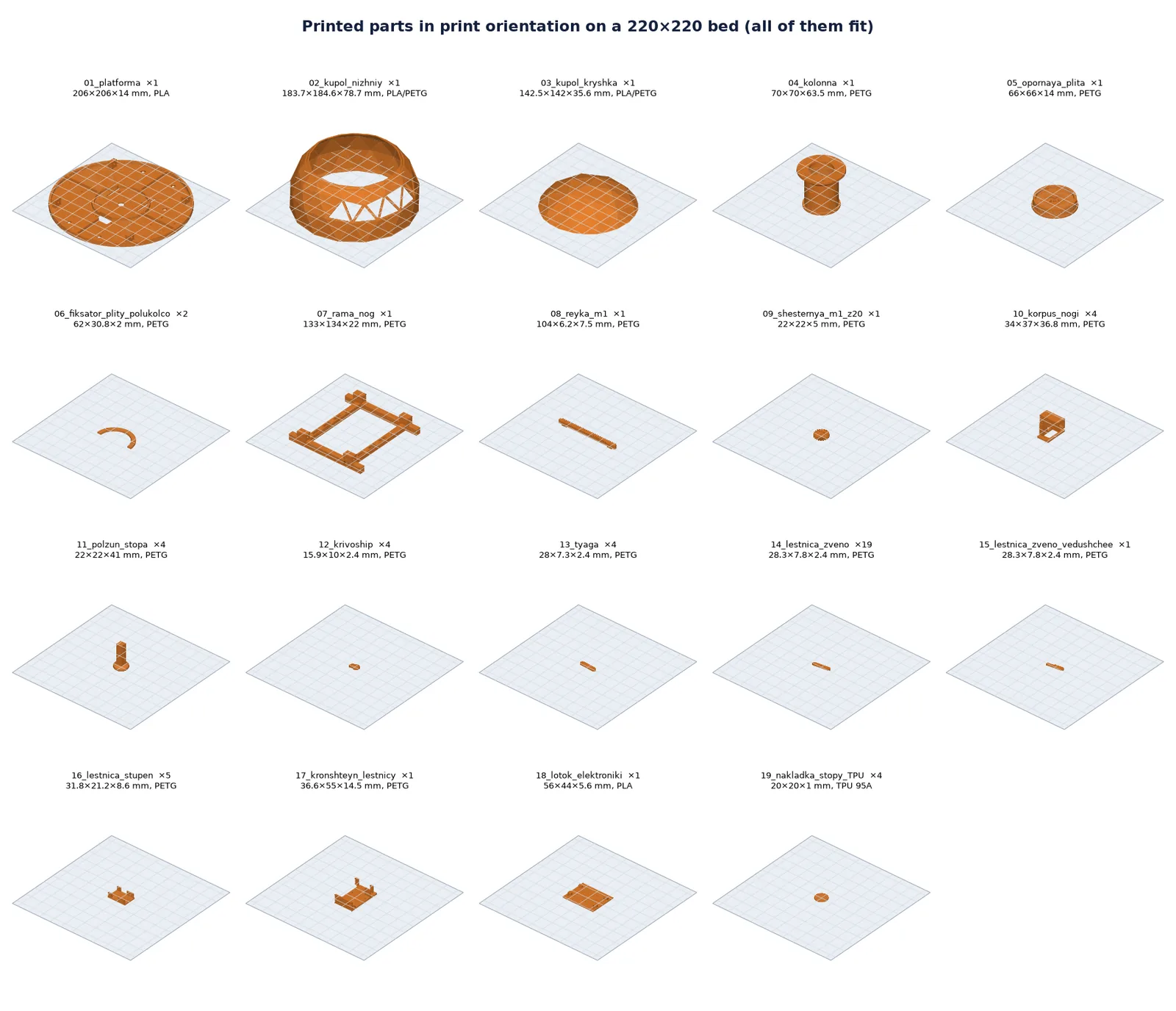

| 3D printing | 19 part types, all ≤ 206 mm (220 × 220 mm bed); ≈310 g PETG + PLA |
| Status | Designed and calculated, firmware compiles; not yet physically assembled |
* All calculations are conceptual, without FEM strength analysis.
Renders and diagrams
Photorealistic images are concept visualisations; technical images are FreeCAD model renders and calculation diagrams.
